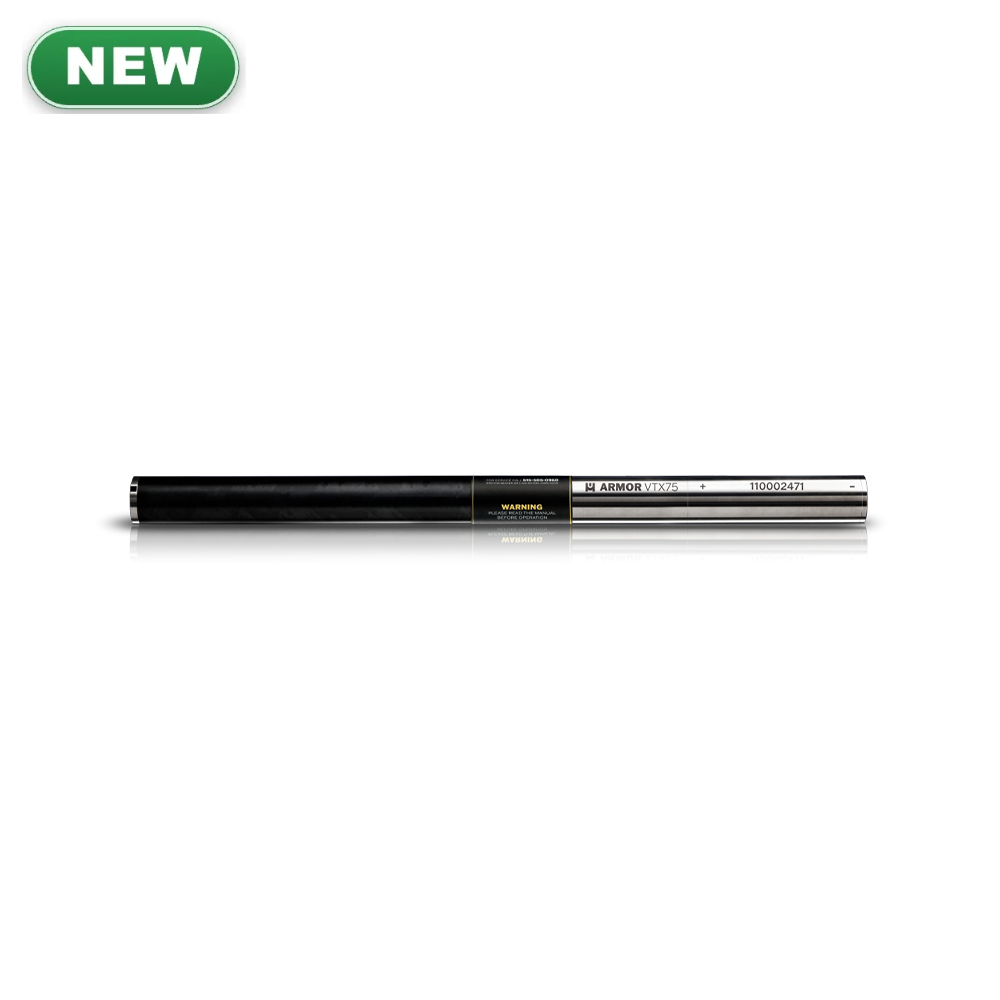

Underground Magnetics Armor VTX75 Transmitter, 19in x 1.25in, New
Underground Magnetics Armor VTX75 Transmitter, 19in x 1.25in, New
SKU:2000429
Couldn't load pickup availability
The Underground Magnetics Armor VTX75 is a 19-inch mid-size HDD transmitter (sonde) for everyday locating and extended-range work. It has 16 selectable frequencies from 0.325 kHz to 41 kHz for strong signal in crowded underground conditions, and it takes either a rechargeable 21700 lithium battery or a primary 261020 lithium cell. Up to 300 hours in low power; up to 246 ft (75 m) range in high power.
Power modes
| Power | Depth and data range | Life, 21700 (4.2 V) | Life, 261020 (3.7 V) |
|---|---|---|---|
| Low | 115 ft (35 m) | 100 hr | 300 hr |
| Medium | 180 ft (55 m) | 18 hr | 50 hr |
| High | 246 ft (75 m) | 7 hr | 20 hr |
Specifications
| UMag part number | 2000429 |
|---|---|
| Dimensions | 19 x 1.25 in |
| System frequency | 16 frequencies, 0.325 kHz to 41 kHz (daily use, rebar, passive and active interference) |
| Battery | 1 x 21700 rechargeable lithium, or 1 x 261020 lithium (primary) |
Works with
Underground Magnetics Mag X GEO Locator System. Requires a 19 in sonde housing.
In stock at Gator HDD Supply in Broussard, LA and Richland, MS — call (337) 277-1785 or (601) 724-2558 for jobsite delivery.
