Underground Magnetics Armor VTX50 Transmitter, 15in x 1.25in, New
Underground Magnetics Armor VTX50 Transmitter, 15in x 1.25in, New
SKU:2000428
Couldn't load pickup availability

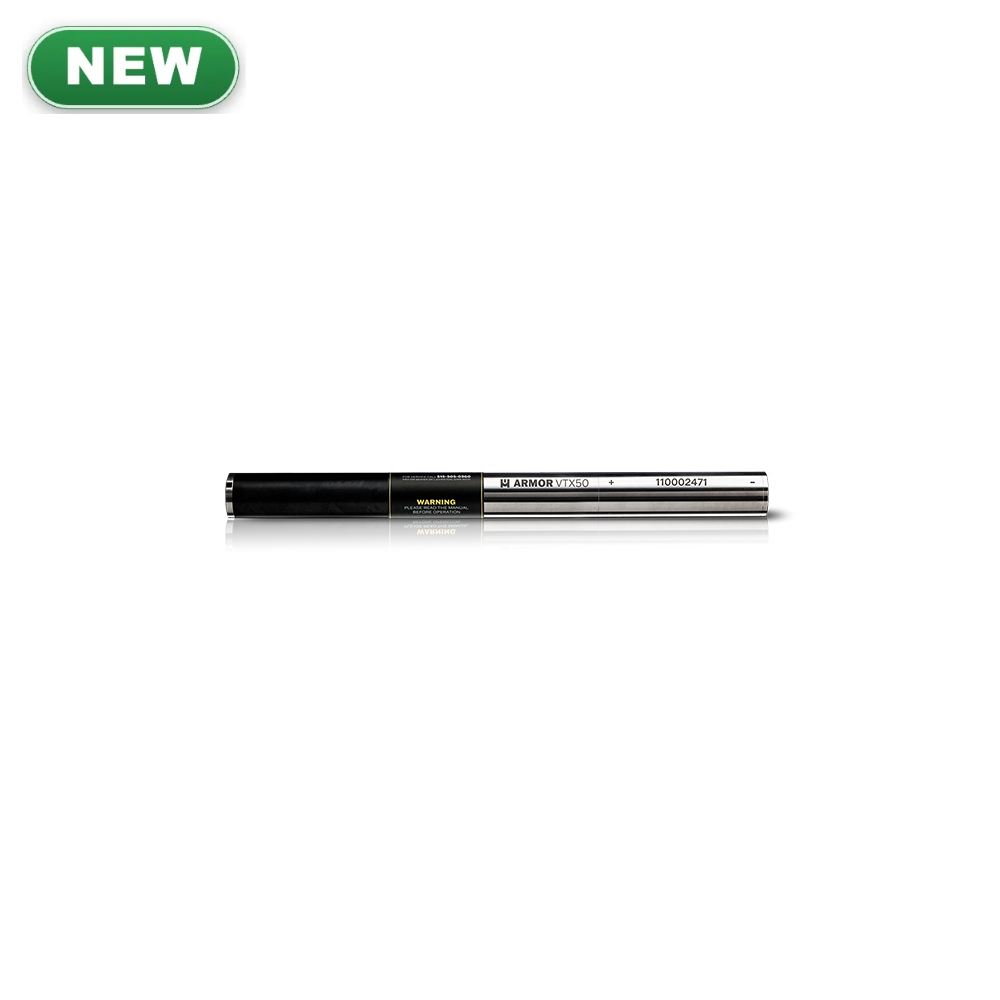

The Underground Magnetics Armor VTX50 is the compact, standard 15-inch HDD transmitter (sonde) for everyday locating and shallow to mid-depth bores. It gives you 16 selectable frequencies from 0.325 kHz to 41 kHz for congested ground and heavy interference, and it runs on either a rechargeable 21700 lithium battery or a primary 261020 lithium cell. Up to 300 hours in low power; up to 164 ft (50 m) range in high power.
Power modes
| Power | Depth and data range | Life, 21700 (4.2 V) | Life, 261020 (3.7 V) |
|---|---|---|---|
| Low | 82 ft (25 m) | 100 hr | 300 hr |
| Medium | 115 ft (35 m) | 30 hr | 80 hr |
| High | 164 ft (50 m) | 9 hr | 25 hr |
Specifications
| UMag part number | 2000428 |
|---|---|
| Dimensions | 15 x 1.25 in |
| System frequency | 16 frequencies, 0.325 kHz to 41 kHz (daily use, rebar, passive and active interference) |
| Battery | 1 x 21700 rechargeable lithium, or 1 x 261020 lithium (primary) |
Works with
Underground Magnetics Mag X GEO Locator System. The VTX50 is also offered as the starting transmitter on that system.
In stock at Gator HDD Supply in Broussard, LA and Richland, MS — call (337) 277-1785 or (601) 724-2558 for jobsite delivery.
