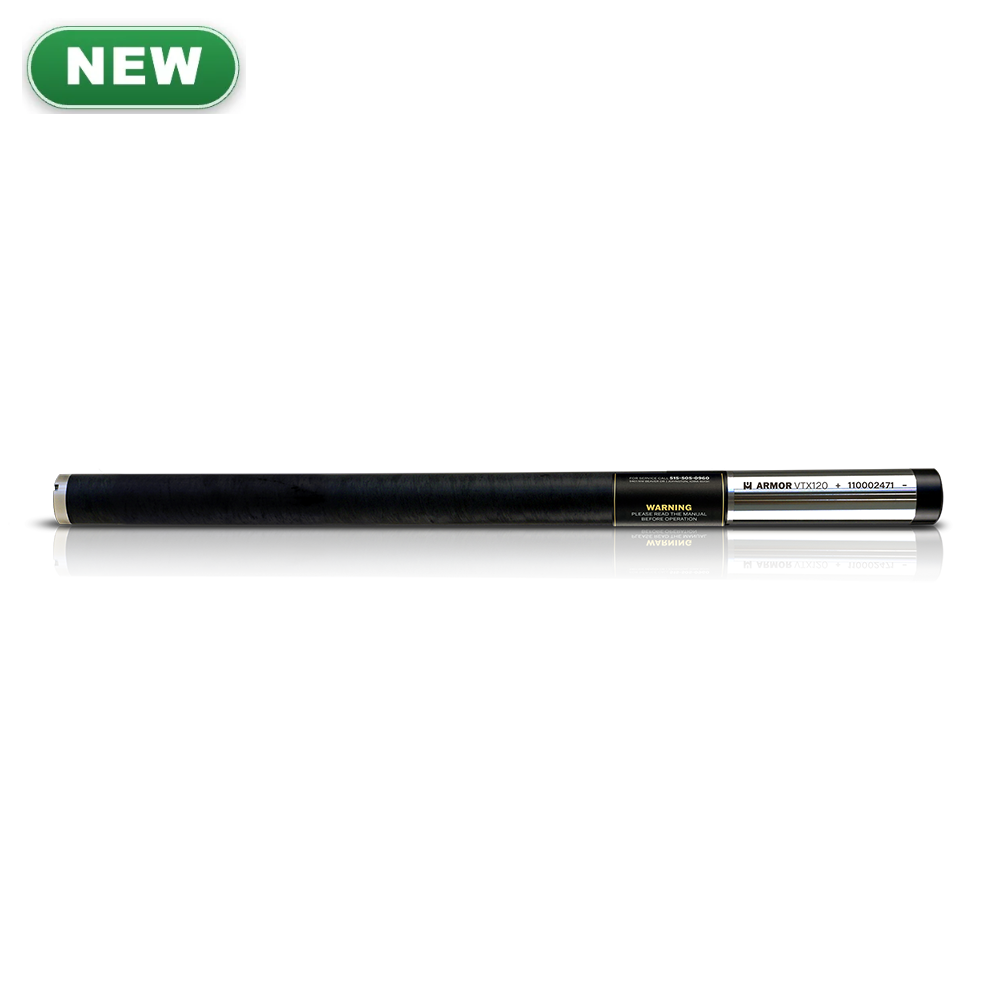

Underground Magnetics Armor VTX120 Transmitter, 24.64in x 1.65in, New
Underground Magnetics Armor VTX120 Transmitter, 24.64in x 1.65in, New
SKU:2000430
Couldn't load pickup availability
The Underground Magnetics Armor VTX120 is the high-output HDD transmitter (sonde) for deep bores, long shots and high-interference ground. It has 16 selectable frequencies from 0.325 kHz to 41 kHz and runs on three 21700 rechargeable lithium batteries in a larger, heavy-duty body. Up to 250 hours in low power; up to 394 ft (120 m) range in high power.
Power modes
| Power | Depth and data range | Battery life (21700 B2) |
|---|---|---|
| Low | 262 ft (80 m) | 250 hr |
| Medium | 328 ft (100 m) | 100 hr |
| High | 394 ft (120 m) | 23 hr |
Specifications
| UMag part number | 2000430 |
|---|---|
| Dimensions | 24.64 x 1.65 in |
| System frequency | 16 frequencies, 0.325 kHz to 41 kHz (daily use, rebar, passive and active interference) |
| Battery | 3 x 21700 B2 rechargeable lithium |
Works with
Underground Magnetics Mag X GEO Locator System. Requires a sonde housing sized for the 24.64 in body.
In stock at Gator HDD Supply in Broussard, LA and Richland, MS — call (337) 277-1785 or (601) 724-2558 for jobsite delivery.
