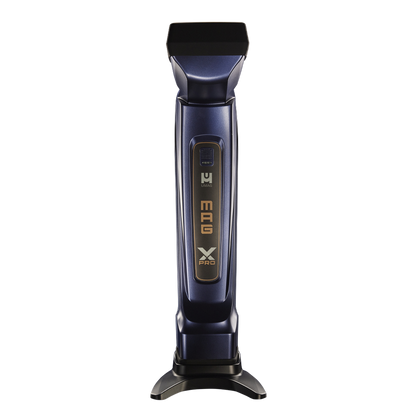

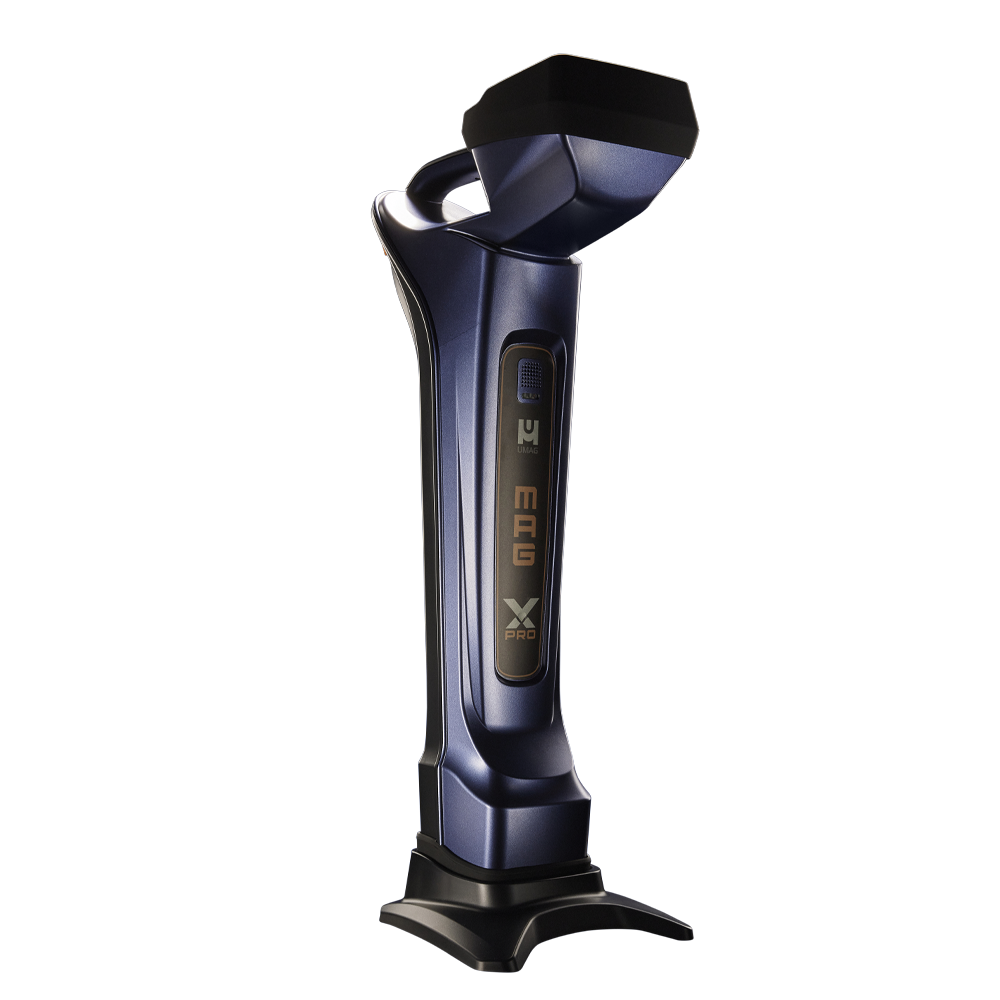

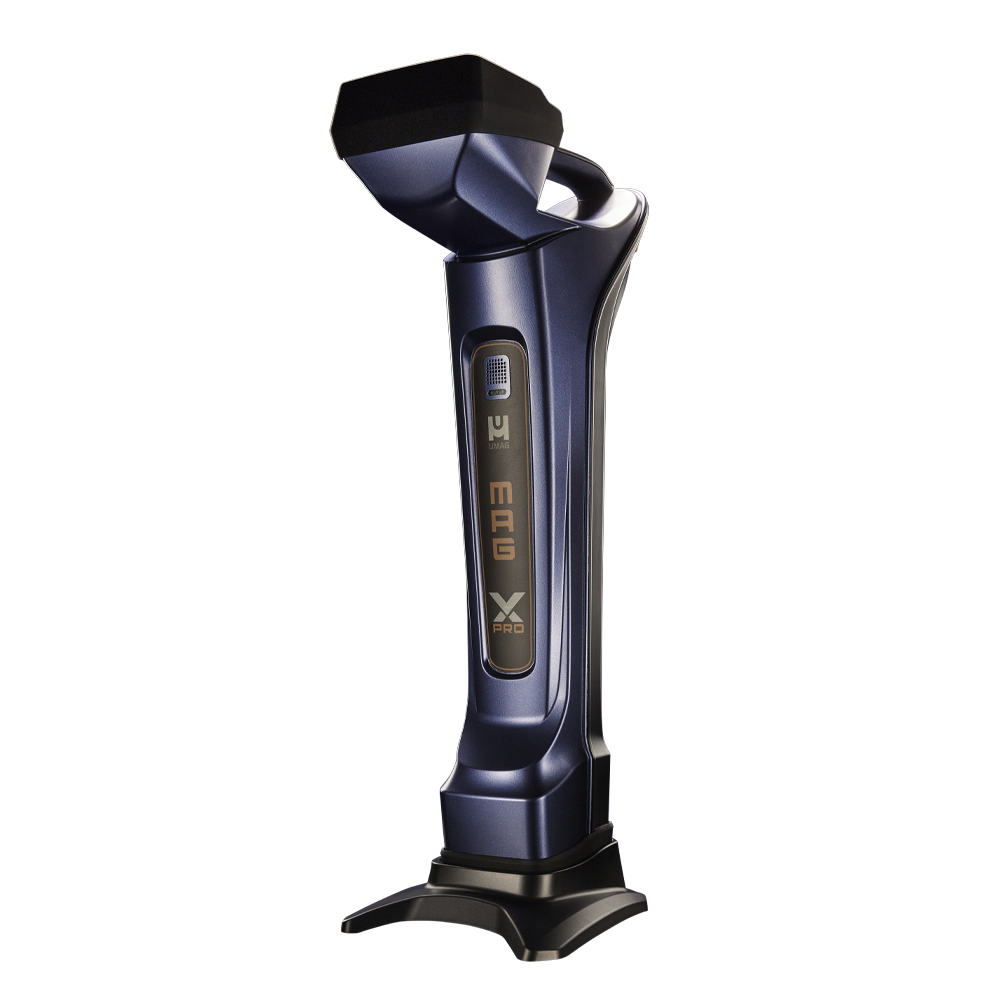

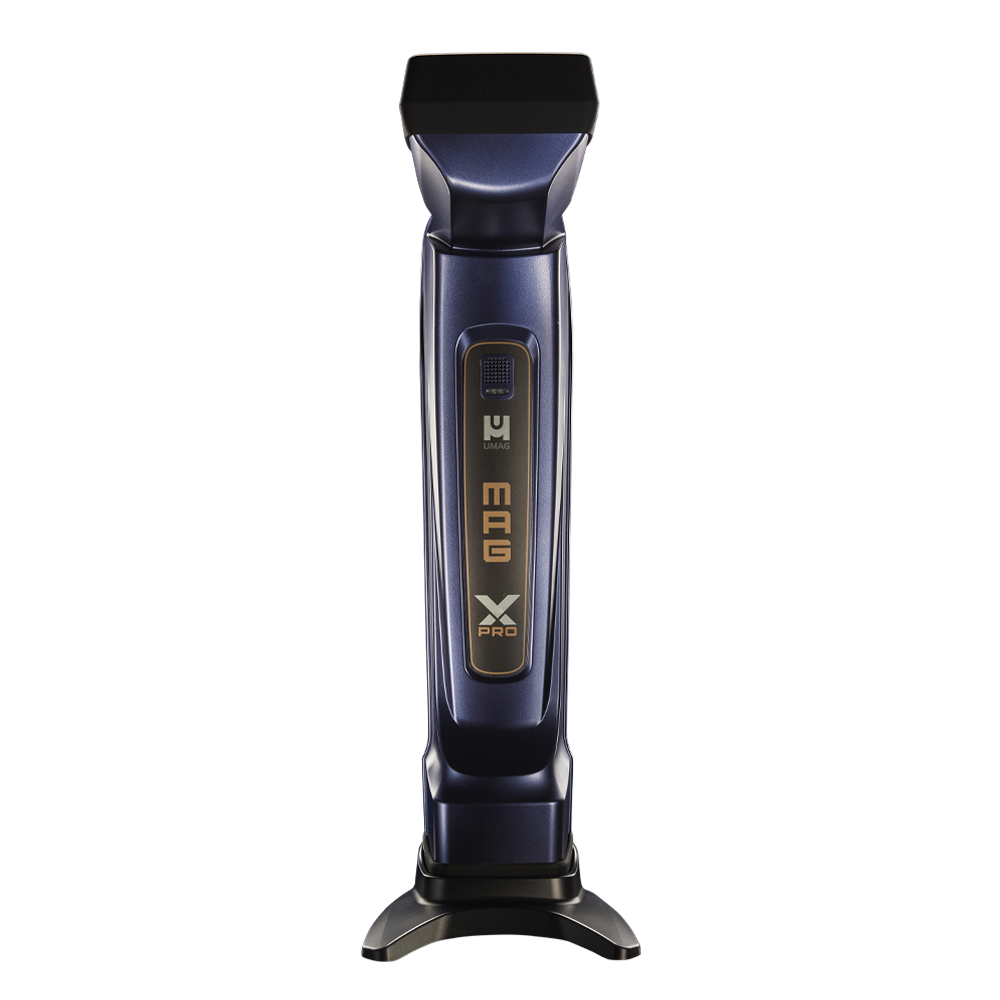

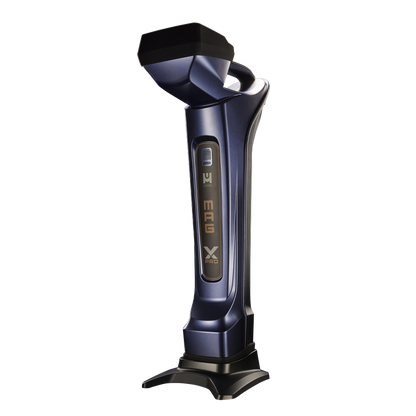

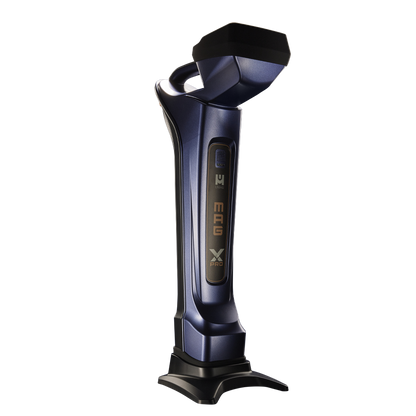

Underground Magnetics Mag X PRO Locator System
Underground Magnetics Mag X PRO Locator System
SKU:UMAG-PRO-XMINI
Couldn't load pickup availability
Enter code UMAG1000 at checkout. Valid through December 31, 2026.
Drill with Ease. The Underground Magnetics Mag X PRO is UMag's most powerful HDD locating system to date. Paired with the Echo 75XF, even the toughest jobs get done with ease. Dual 3D solid core antennas give roughly twice the range at sub-kHz frequencies, and built-in one-touch logging records the bore as you go.
Dual 3D solid core antennas
- Roughly 2X range for sub-kHz frequencies
- Rebar-ready to combat passive interference
- Bore-to steering and walkover mode
Automated data logging
- Built-in one-touch logging
- Rodwise and chart views
- Add and edit utility crossings
- Email and sync reports to UM Maps from the display
Echo 75XF 19 in transmitter
- Low power: 114 ft, 100 hours
- Medium power: 180 ft, 60 hours
- High power: 278 ft, 11 hours
Choose your mount and transmitter

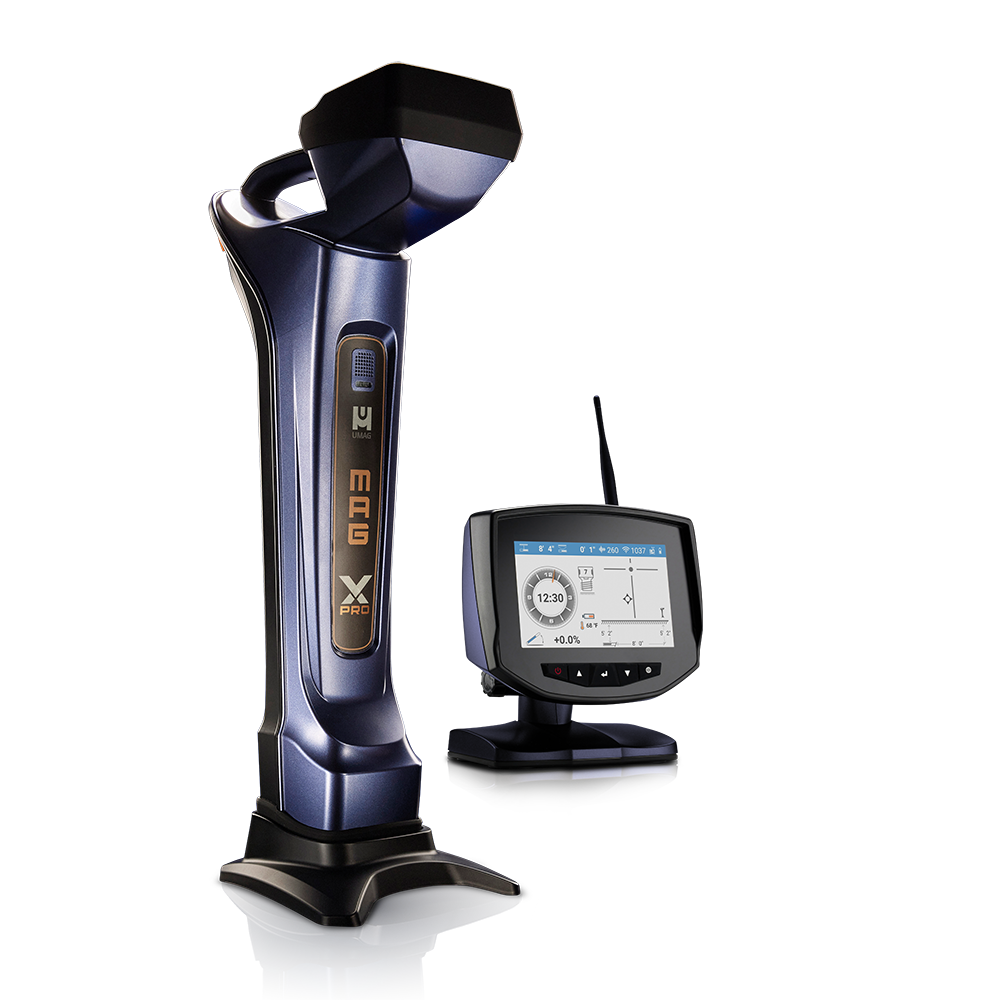

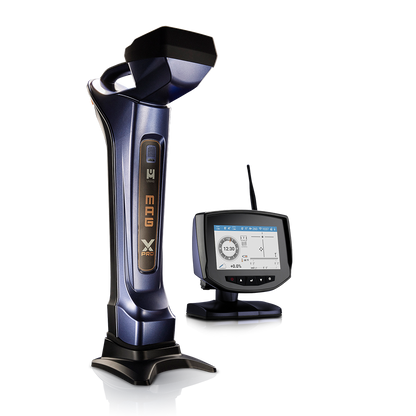

Every Mag X PRO system ships with the Mag X PRO locator and remote display. Pick a Locating System Mount (Magnetic Mount or Panel Mount, same price) and an Echo transmitter or bundle in the options above; the price already includes both. Bundles include two transmitters.
| Transmitter | UMag part number | Adds to the $16,000 system |
|---|---|---|
| Echo X-Mini | 2000900 | $1,500 |
| Echo 50XF | 2000202XF | $4,000 |
| Echo 75XF | 2000321 | $5,000 |
| Echo 70 | 2000204 | $5,500 |
| Echo 90 | 2000205 | $6,000 |
| Echo 110 | 2000206 | $7,000 |
| Echo 50XF + 50XF Bundle | 2 x 2000202XF | $6,000 |
| Echo 75XF + 50XF Bundle | 2000321 + 2000202XF | $7,000 |
| Echo 75XF + 75XF Bundle | 2 x 2000321 | $7,500 |
| Echo 110 + 110 Bundle | 2 x 2000206 | $10,500 |
Specifications
| Antenna | Solid Core 3D antenna cluster |
|---|---|
| Transmitters supported | Echo 110, 90, 75XF, 70, 60, 50XF, 50, ST, X-Mini |
| System frequency | 16 frequencies, 0.325 kHz to 41 kHz |
| Radio frequency | 915 MHz (US), 433 MHz (EU), 867 MHz (IN) |
| Telemetry | 4 radio channels, range up to 3,000 ft (900 m) |
| Power | Rechargeable lithium battery, 12.5 V; up to 50 hours |
| Weight / size | 38 lb, 29 x 9 x 13 in |
| Temperature range | -4 to 140 °F (-20 to 60 °C) |
| Waterproof | IP65 |
Manuals and spec sheets
Add-on: Utility locating system
In stock at Gator HDD Supply in Broussard, LA and Richland, MS — call (337) 277-1785 or (601) 724-2558 for jobsite delivery.
