Underground Magnetics Mag X COR Locator System
Underground Magnetics Mag X COR Locator System
SKU:UMAG-COR-ST
Couldn't load pickup availability

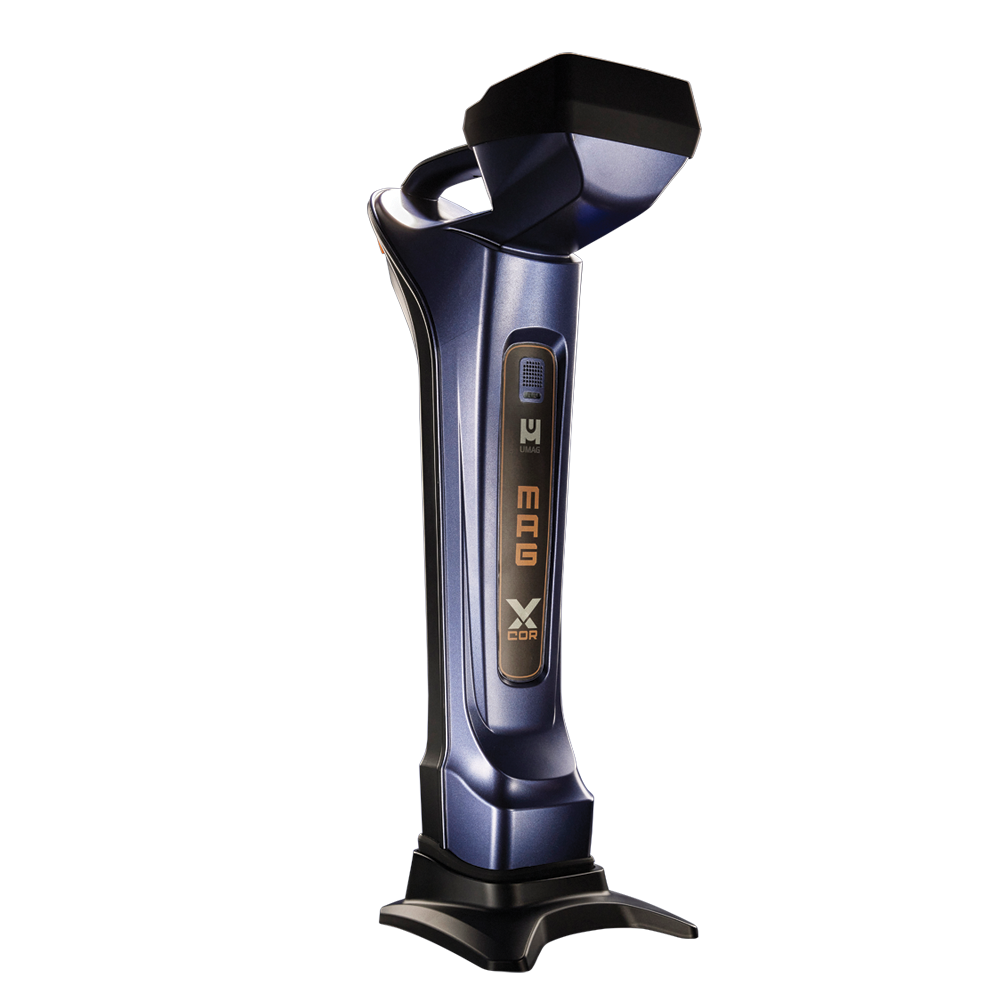

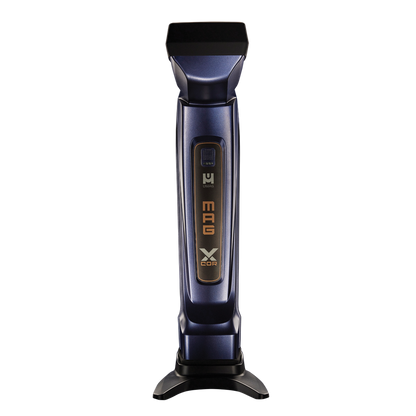

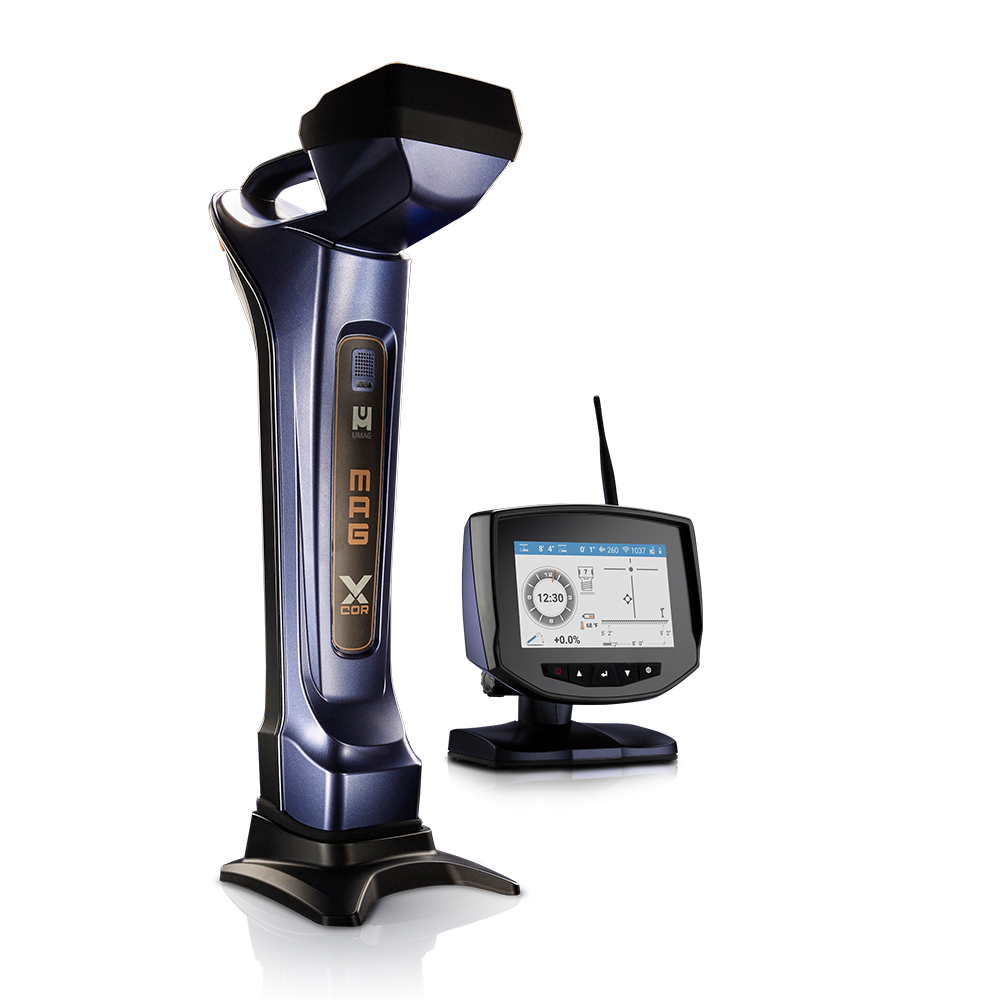

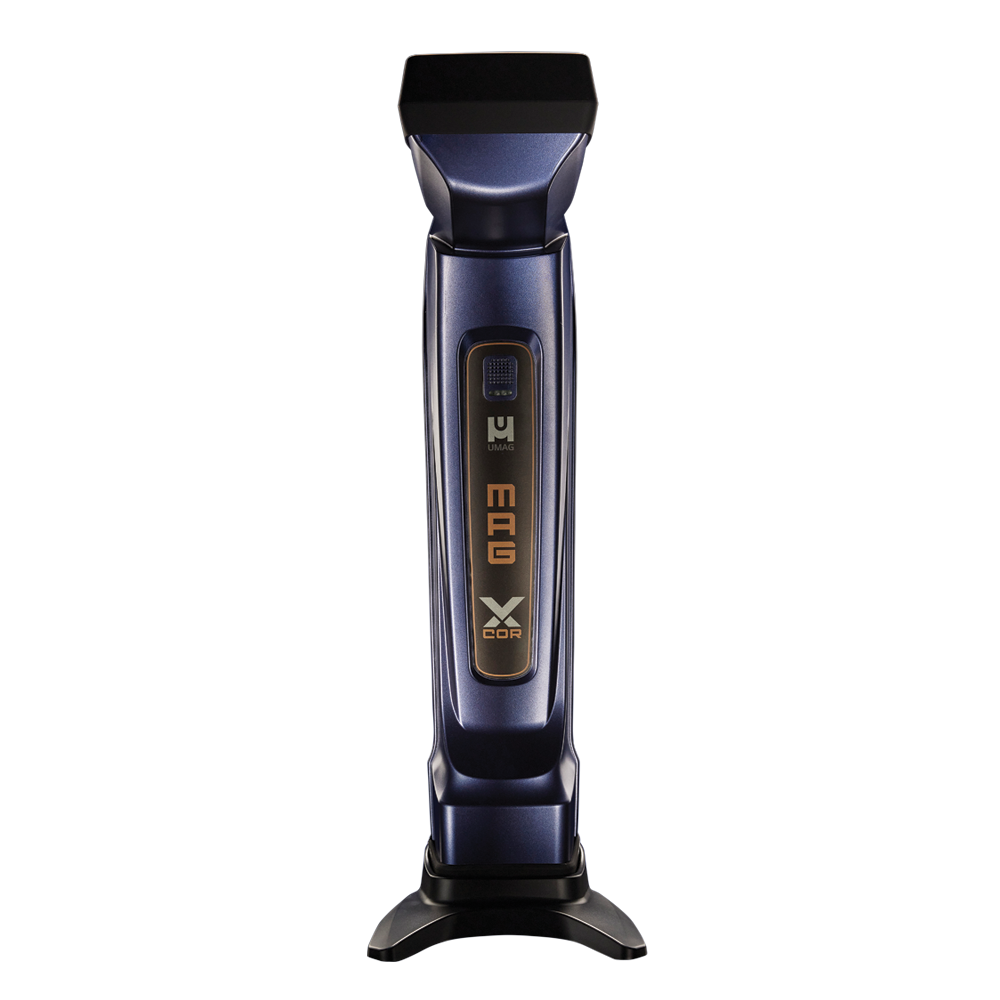

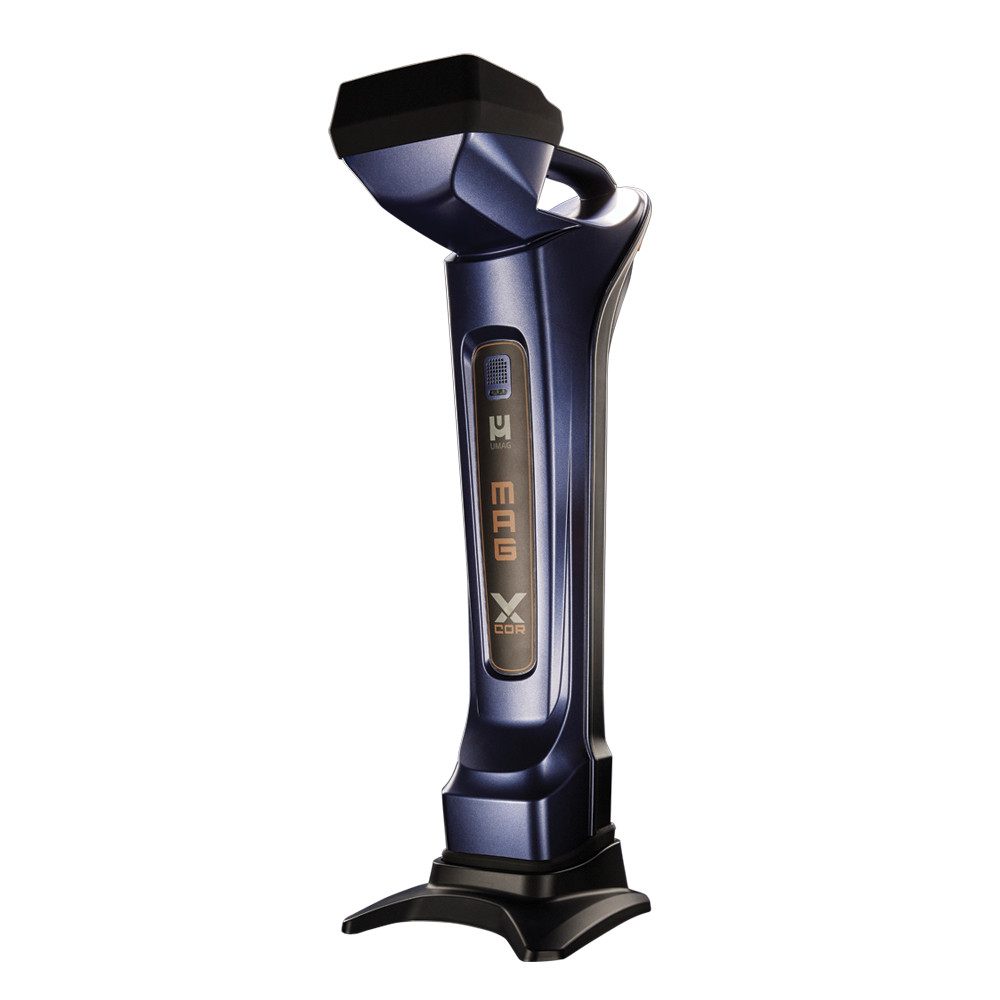

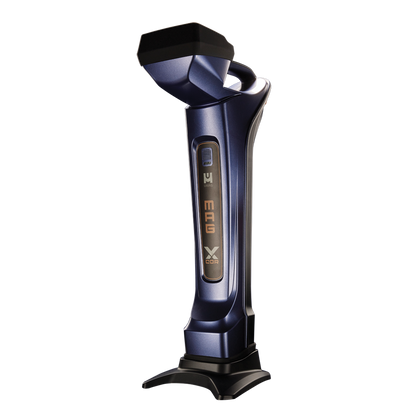

Drill with Ease. The Underground Magnetics Mag X COR gives you the core features you want and pairs them with the power you have come to know from UMag locators: a stand-up receiver with a 4-inch high-contrast LCD, a 7-inch color Android touch-screen drill display, and built-in one-touch data logging.
Simplicity paired with power

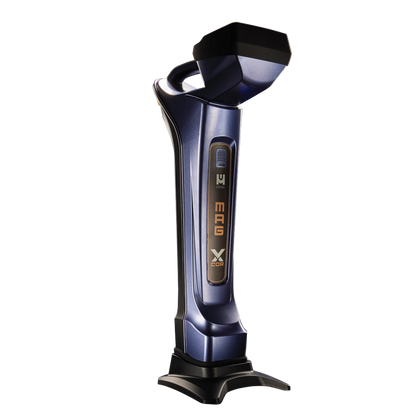

- Stand-up receiver with a 4 in high-contrast LCD display
- 7 in color Android-based touch-screen drill display
- Bore-to steering and walkover modes
Automated data logging
- Built-in one-touch logging
- Rodwise and chart views
- Add and edit utility crossings
- Email and sync reports to UM Maps from the display
Echo 50XF 15 in transmitter
- 16 frequencies, 0.325 kHz to 41 kHz
- Up to 60 hours of battery life
- 164 ft (50 m) data range
Choose your mount and transmitter

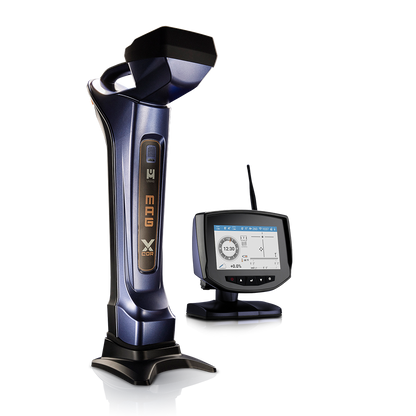

Every Mag X COR system ships with the Mag X COR locator and remote display. Pick a Locating System Mount (Magnetic Mount or Panel Mount, same price) and an Echo transmitter or the 50XF + 50XF bundle in the options above; the price already includes both. The bundle includes two transmitters.
| Transmitter | UMag part number | Adds to the $13,000 system |
|---|---|---|
| Echo ST | 2000107 | $1,200 |
| Echo X-Mini | 2000900 | $1,500 |
| Echo 50XF | 2000202XF | $4,000 |
| Echo 50XF + 50XF Bundle | 2 x 2000202XF | $6,000 |
Specifications
| Antenna | Faraday-shielded 3D antennas |
|---|---|
| Compatible transmitters | Echo 50, Echo 50XF, Echo ST, Echo X-Mini |
| System frequency | 16 frequencies, 0.325 kHz to 41 kHz |
| Radio frequency | 915 MHz (US), 433 MHz (EU), 867 MHz (IN) |
| Telemetry | 4 radio channels, range up to 3,000 ft (900 m) |
| Power | Rechargeable lithium battery, 12.5 V; up to 50 hours |
| Weight / size | 38 lb, 29 x 9 x 13 in |
| Temperature range | -4 to 140 °F (-20 to 60 °C) |
| Waterproof | IP65 |
Manuals and spec sheets
Add-on: Utility locating system
In stock at Gator HDD Supply in Broussard, LA and Richland, MS — call (337) 277-1785 or (601) 724-2558 for jobsite delivery.
Jobsite delivery & pickup
Jobsite delivery & pickup
In stock at Gator HDD Supply in Broussard, LA and Richland, MS. Pick up at either store or call for same-day jobsite delivery: Broussard (337) 277-1785 or Richland (601) 724-2558.
